WTR Rubber Reclaim
Premium Grade
Eco-Friendly
Product Overview
Our Natural Rubber Reclaim is manufactured using advanced devulcanization technology to restore the properties of used rubber. Available in multiple grades (MARN 111, 101, 202, 555) to meet various application requirements.
Key Features:
- Excellent plasticity and processability
- Good adhesion properties
- Low ash content
- Consistent quality and performance
- Cost-effective rubber compound ingredient
MARN 111 Super Fine Grade
| Property | Value | Units |
|---|---|---|
| Hardness (Shore A) | 60 ± 5 | - |
| Mooney Viscosity | 35 - 60 | ML(1+4)100°C |
| Elongation at Break | 200 Min | % |
| Tensile Strength | 48 Min | kg/cm² |
| Specific Gravity | 1.12 ± 0.03 | g/cm³ |
| Volatile Matter | 1 Max | % |
| RHC by Difference | 48 Min | % |
| Acetone Extract | 14 ± 2 | % |
| Carbon Black | 25 ± 2 | % |
| Ash Content | 7 ± 2 | % |
Primary Applications:
- Tire tread compounds
- Tire sidewall compounds
- High-performance rubber goods
- EPDM profiles
MARN 101 Medium Grade
| Property | Value | Units |
|---|---|---|
| Hardness (Shore A) | 60 ± 5 | - |
| Mooney Viscosity | 35 - 60 | ML(1+4)100°C |
| Elongation at Break | 190 Min | % |
| Tensile Strength | 40 Min | kg/cm² |
| Specific Gravity | 1.12 ± 0.03 | g/cm³ |
| Volatile Matter | 1 Max | % |
| RHC by Difference | 48 Min | % |
| Acetone Extract | 14 ± 2 | % |
| Carbon Black | 25 ± 2 | % |
| Ash Content | 7 ± 2 | % |
Primary Applications:
- Tire bead compounds
- Inner tubes and flaps
- Conveyor belts
- Gaskets and oil seals
MARN 202 Coarse Grade
| Property | Value | Units |
|---|---|---|
| Hardness (Shore A) | 60 ± 5 | - |
| Mooney Viscosity | 35 - 60 | ML(1+4)100°C |
| Elongation at Break | 190 Min | % |
| Tensile Strength | 40 Min | kg/cm² |
| Specific Gravity | 1.12 ± 0.03 | g/cm³ |
| Volatile Matter | 1 Max | % |
| RHC by Difference | 48 Min | % |
| Acetone Extract | 14 ± 2 | % |
| Carbon Black | 25 ± 2 | % |
| Ash Content | 7 ± 2 | % |
Primary Applications:
- Solid tire compounds
- Cycle tire compounds
- Retreading applications
- Hoses and pipes
MARN 555 High Tensile Grade
| Property | Value | Units |
|---|---|---|
| Hardness (Shore A) | 60 ± 5 | - |
| Mooney Viscosity | 35 - 60 | ML(1+4)100°C |
| Elongation at Break | 260 Min | % |
| Tensile Strength | 65 Min | kg/cm² |
| Specific Gravity | 1.12 ± 0.03 | g/cm³ |
| Volatile Matter | 1 Max | % |
| RHC by Difference | 48 Min | % |
| Acetone Extract | 14 ± 2 | % |
| Carbon Black | 25 ± 2 | % |
| Ash Content | 7 ± 2 | % |
Primary Applications:
- High-tensile tire applications
- Impact modification compounds
- Insulation sheets (sound/heat)
- Cable compounds
Processing Information
Storage & Handling
- Store in cool, dry conditions
- Protect from direct sunlight
- Use within 12 months of manufacture
- Avoid contamination with foreign materials
Processing Parameters
- Mill Temperature: 60-80°C
- Mixing Time: 3-5 minutes
- Cure Temperature: 150-170°C
- Compatible with sulfur curing systems
Packaging Options
- 25 kg plastic bags
- 500 kg jumbo bags
- 1000 kg big bags
- Custom packaging available

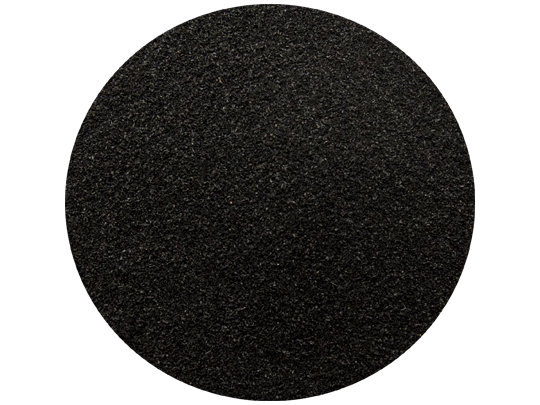

Powder Rubber (TPR)
Fine Grade
High Purity
Product Overview
Tire Powder Rubber (TPR) is produced through ambient grinding of scrap tires, resulting in fine rubber powder with excellent properties for various applications including asphalt modification, rubber compounding, and plastic modification.
Key Features:
- Ultra-fine particle size distribution
- High surface area for better dispersion
- 99.5% steel and textile free
- Consistent particle shape and size
- Enhanced adhesion properties
Technical Specifications
| Property | Value | Units |
|---|---|---|
| Carbon Black Content | 33.15 | % |
| Acetone Extraction | 7.40 | % |
| Ash Content | 7.73 | % |
| Steel Content | 0 | % |
| WTR Rubber | 34 | % |
| Fiber Content | 0 | % |
Available Mesh Sizes
20 MESH
25 MESH
30 MESH
40 MESH
80 MESH
100 MESH
Detailed Applications
Asphalt Modification
TPR enhances asphalt performance by improving elasticity, reducing temperature susceptibility, and extending pavement life.
- Recommended dosage: 15-25% by weight of asphalt
- Mixing temperature: 160-180°C
- Improved rutting resistance
- Enhanced fatigue life
Rubber Compounding
Used as a partial replacement for virgin rubber in compound formulations to reduce costs while maintaining properties.
- Replacement level: 5-20% of total rubber
- Compatible with NR, SBR, and BR
- Cost reduction: 10-30%
- Maintains processing characteristics
Plastic Modification
Improves impact resistance and flexibility of thermoplastic compounds.
- Loading: 5-15% in plastic matrix
- Enhanced impact strength
- Improved flexibility
- Noise dampening properties
Coatings & Sealants
Provides texture, slip resistance, and enhanced durability in protective coatings.
- Anti-slip additives
- Texture enhancement
- Vibration dampening
- Weather resistance
Rubber Granules (SPR)
Multi-Size
Safety Grade
Product Overview
Shredded and Processed Rubber (SPR) granules are produced through mechanical shredding and screening of scrap tires. Available in multiple size ranges to meet diverse application requirements from sports surfaces to construction materials.
Key Features:
- Multiple size grades available
- 99% steel and textile free
- Excellent shock absorption
- Weather and UV resistant
- Long-lasting performance
Available Granule Sizes
1 mm Granules
| Particle Size | 1.0 mm |
| Steel Content | 0% |
| Ash Content | 7.73% |
| Natural Rubber | 34% |
Applications:
- Fine surface applications
- Precision molding
- Smooth surface requirements
1-2 mm Granules
| Particle Size Range | 1.0-2.0 mm |
| Steel Content | 0% |
| Ash Content | 7.73% |
| Natural Rubber | 34% |
Applications:
- Playground surfaces
- Athletic tracks
- Safety surfacing
1-3 mm Granules
| Particle Size Range | 1.0-3.0 mm |
| Steel Content | 0% |
| Ash Content | 7.73% |
| Natural Rubber | 34% |
Applications:
- Sports surfaces
- Playground infill
- Impact absorption
1-4 mm Granules
| Particle Size Range | 1.0-4.0 mm |
| Steel Content | 0% |
| Ash Content | 7.73% |
| Natural Rubber | 34% |
Applications:
- General purpose surfacing
- Landscaping applications
- Drainage systems
Performance Characteristics
Physical Properties
| Specific Gravity | 1.10-1.30 | ASTM D792 |
| Hardness (Shore A) | 55-75 | ASTM D2240 |
| Tensile Strength | 8-15 MPa | ASTM D412 |
| Elongation at Break | 200-400% | ASTM D412 |
| Compression Set | 15-25% | ASTM D395 |
Impact Absorption
| Critical Fall Height (25mm) | 1.0-1.2m | EN 1177 |
| Critical Fall Height (40mm) | 1.5-1.8m | EN 1177 |
| Head Injury Criterion | <1000 | EN 1177 |
| g-max Value | <200 | EN 1177 |
Environmental Resistance
| UV Resistance | Excellent | ASTM G154 |
| Ozone Resistance | Excellent | ASTM D1149 |
| Temperature Range | -40°C to +80°C | - |
| Water Absorption | <2% | ASTM D570 |
Safety & Environmental Information
Material Safety
- Non-toxic and safe for human contact
- Meets CPSC safety standards for playground surfaces
- Heavy metals content below regulatory limits
- No sharp edges or hazardous materials
- Suitable for children's play areas
Environmental Benefits
- 100% recycled content from waste tires
- Diverts tires from landfills
- Reduces environmental pollution
- Energy savings compared to virgin materials
- Contributes to circular economy
Installation Guidelines
- Proper sub-base preparation required
- Use appropriate binding systems when needed
- Follow manufacturer's installation guidelines
- Regular maintenance extends service life
- Professional installation recommended
Need Technical Support?
Our technical team is available to assist with product selection, specifications, and application guidance.
